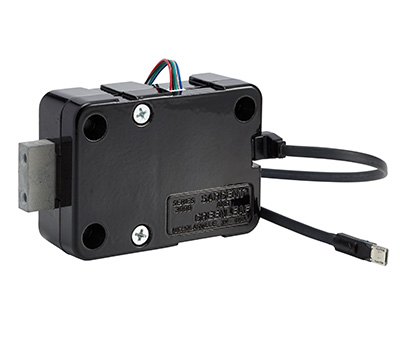

A-Series with Display™
ATM Lock

A-Series with Display improves speed and accuracy with an extra-large, 30-character display featuring icons, images, and text. A built-in USB port allows real-time download of up to 1,000 events from multiple locks, and our optional one-time code app enables faster access without calling dispatch. Globally trusted for security and intuitive use, A-Series with Display is the faster, easier ATM locking solution.

Purchasing Options

3006-202 - A Series With Display Complete Lock Pivot Bolt - NON STOCK
3007-202 - A Series With Display Complete Lock D-Drive - NON STOCK
3028-202 - A Series With Display Complete Lock Dead Latching - NON STOCK
3029-202 - A Series With Display Complete Lock Push/Pull - NON STOCK

FEATURES

Security

A-Seal code generated automatically when lock is closed.

Bolt position indicator monitors the locked or unlocked bolt position.

Duress capability via optional duress module.

Penalty lockout after five failed attempts.

One-time code via phone dispatch or optional mobile app.

Flexibility

Three modes of operation:

Bank Mode: No key required; up to 30 users; 99 min time delay; Dual and Single control access options.

Service Mode: PIN, touch key, and one-time-code required to open.

Bank + Service Mode: Utilize both modes simultaneously.

Interface

Extra-large 30-character screen with icons, images, and text.

Interface includes indicator lights and audio feedback.

Ease & Support

Intuitive 30-character display screen including audio and visual feedback.

No vendor meets.

Standard S & G Magic Module footprint.

Universally handed.

10 minute average installation time.

24/7 technical support.

Audit Trail

Fast, accurate USB download: 1,000 event, time- and date-stamped audit trail with multiple locks accessed through one device. Email audit trail without additional software.

Traditional iButton download: 400 event, time- and date-stamped audit trail with one device per lock.

Intuitive, multi-language software with optional custom translator.

Simple navigation and user-friendly functionality independent of language or experience.

Warranty

Two year limited warranty from date of shipment from the manufacturer.

Certifications

UL Type 1

VdS
