Description
The key management system is suitable for tracking the key movements, managing, and logging keys of vehicles, offices, banks, government buildings, hotels, hospitals, etc. Keys are secured to a robust, steel RFID fob. The system can be standard or customized if required storing from 10 up to 400 keys. In case of a customized system when required intelligent storage boxes could be added for your valuables along with the key modules. The modular design allows for a custom built and variable system. The intelligent system logs and tracks every key movement (key pickup, key return, door opening/closing). Administrators can give permissions to users, manage bookings, key pickups and choose from several other customizable options. The key storage cabinets can be integrated into companies’ ERP and access control systems.
Description
- Graphics control program
- Bult-in dual core computer
- Bult-in touch screen LCD monitor
- Bult-in proximity card reader
- TCP/IP ethernet protocoll
- SSD system drive
- Backup memory
- Modular design
- Made form steel
- Remote control
- Integration with other systems
Remote administration
By using the Web-interface you can manage your system from your office. Integrate your cabinets with the Access Control and HR systems
Advantages
▪ Built in a safe for higher security
▪ Built up of modules and later expandable
▪ Easy to install, Plug&Play
▪ 24/7 support
▪ Remote support available
▪ 4 year warranty
Specification
Cabinet Types
▪ Thin wall Cabinet
▪ Key and Box Cabinet
▪ Storage Cabinet
▪ Safe
Safe certifications
▪ SS3492 (Swedish Standard),
▪ EN 14450 Standard, "S1" qualificationStorage capacity
Cabinet doors
▪ With/without door (right sided, left sided)
▪ Transparent plastic door
▪ Full metal door
Computer module
Industrial PC, Intel Atom E3845 1.91 GHz, Built
in SSD/HDD and external memory for backup,
4 GB DDR3 RAM, 8.9" Touch screen TFT, 2 Ethernet interfaces, RS232, USB, Windows 10
Embedded operating systems
Power Requirement
230V50Hz / 110V60Hz AC
Internal Battery
7Ah, up to 45 min. operation
Consumption
60W
Operating Temperature
0 – 40°C (32°F – 104°F)
Color of the Cabinet
▪ RAL 9002
▪ YW361F
▪ on demand
Software
The IQ key management and storage system software is attractive, easy to use, user-friendly, the interface of the graphic touch screen ensure the users to pick up keys and key returns, and the usage and control of keys.
The thoughtful, ergonomic key management software development allows easy and fast, however transparency operations of the key management system, even for the layman users. For the administrator's number of unique, customizable configuration options ensures that the key management cabinet meet with the special and unique application requirements and high expectations. All the services of the key management system are available and can be configured on the graphic interface of the IQ key management software, but for system administrators remote monitoring is also possible through the web-based interface. On the visible graphic display, the key management system is easy and transparency to use, and manageable.
Security
Emergency & securityThe key modules are also equipped with an emergency button. You can pick up your keys in emergency situation by pressing this button, but it works only if you have turned your extra safe emergency key on.
Access to the Computer module is also protected by an additional key.
In emergency situation external systems (like fire alarm) can give a signal to the cabinet through its inbound ports.
In the event of electricity outage the internal backup battery will give service.
In our products we use the most advanced micro-electronic devices, equipment and developments which are high-reliability and high-tech equipment, key control systems; we are delivering them to our customers.

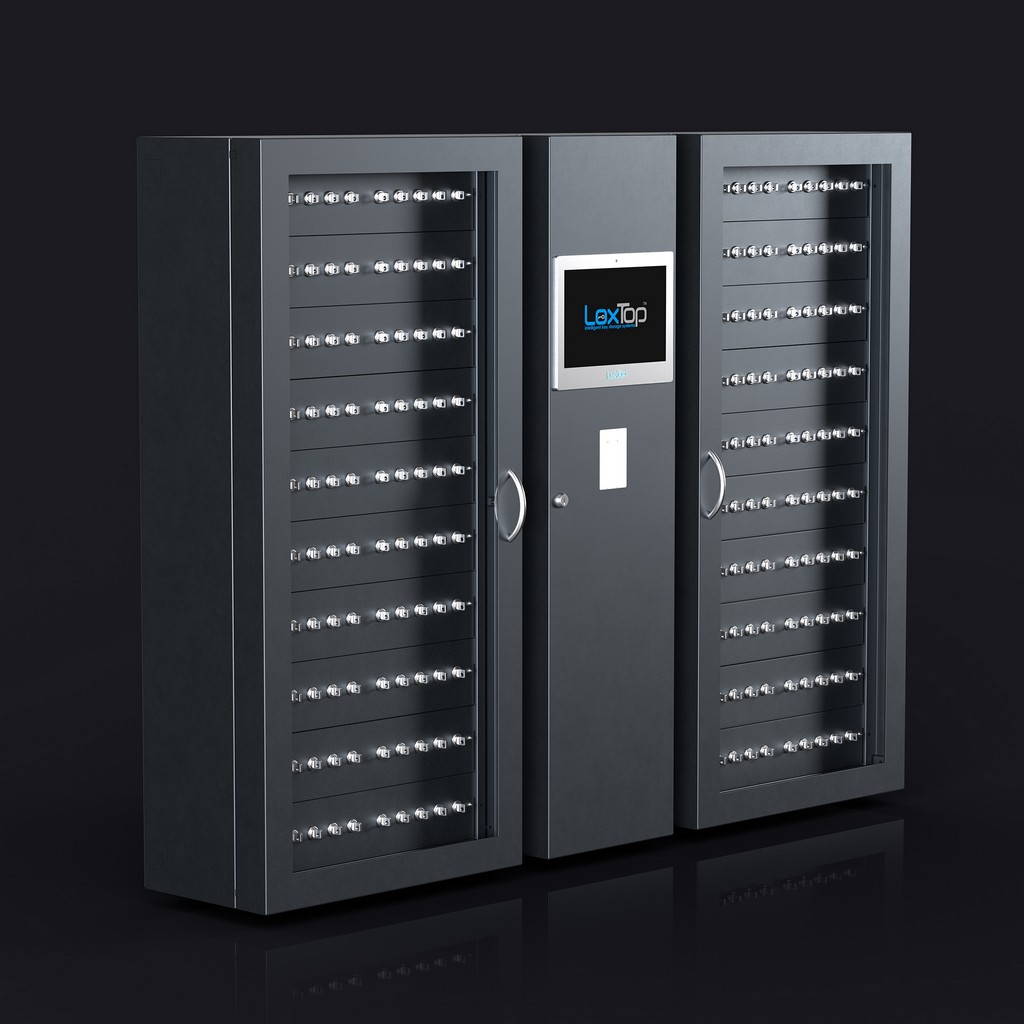

RobustCabinets are made from steel with powder coat finish.
